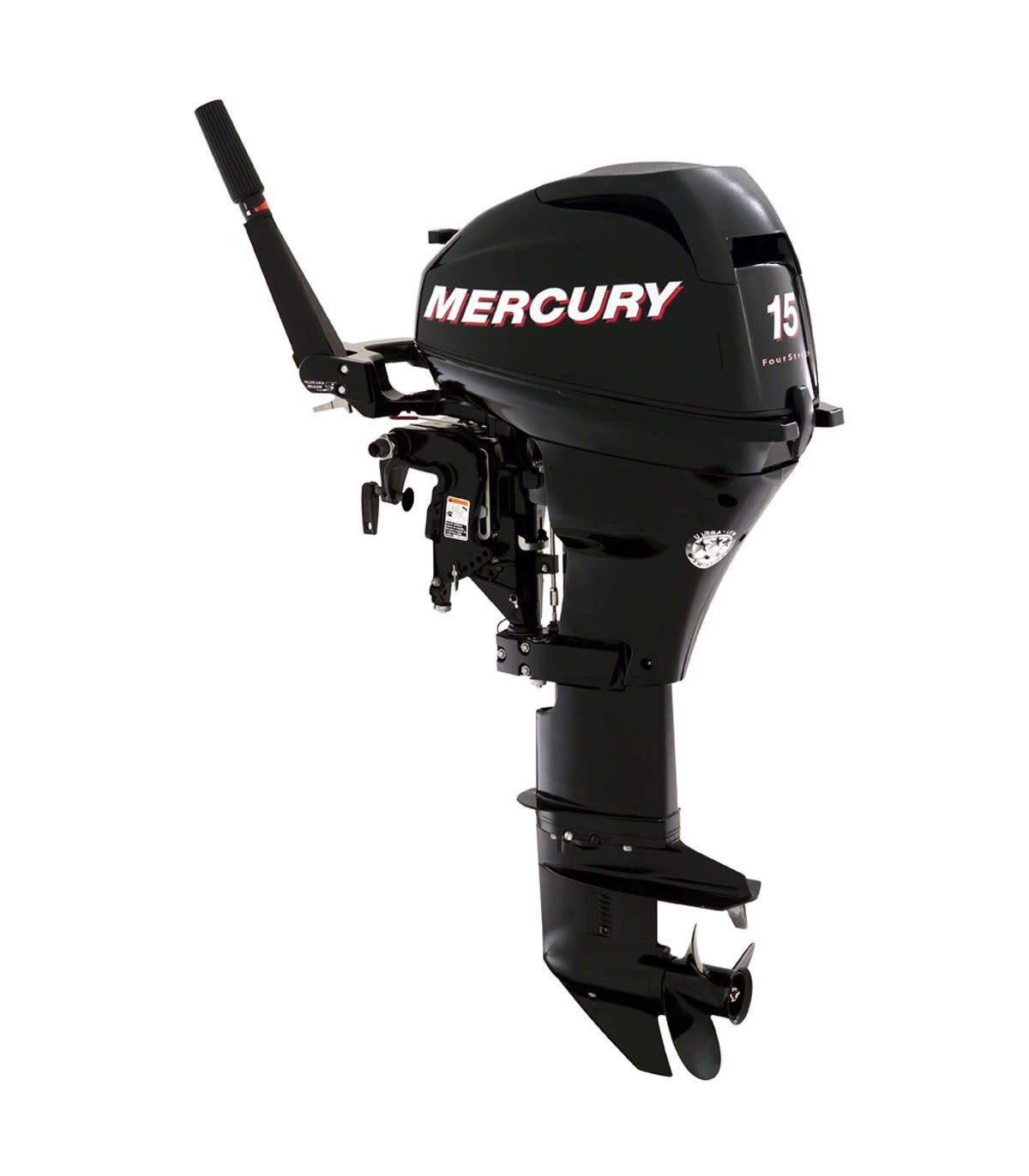

MERCURY - 15 HP ELH

FourStroke 15: Cutting-Edge Reliability

Take your Mercury anywhere and enjoy the fun of compact inflatables or small fishing boats. Mercury offers a complete line of exceptionally lightweight, portable four-stroke outboards.

All you have to do is choose from the many models. Easy to transport, easy to handle. Intelligent, eco-friendly, quiet, and economical, they are the engine of choice:

• The 15HP four-stroke and its reliable alternator (6 amp, 76 watts for manual start models or 10 amp, 126 watts for electric start models).
• Propeller exhaust for quiet operation.
• The monitoring system protects an engine under abnormal stress by automatically reducing its power.
• Five-year limited factory warranty, with coverage that does not decrease. Subject to conditions and limitations. Not valid for commercial or racing use.

• Features

FEATURES	FOURSTROKE 15
Power	15 hp (11.03 kw)
Dry weight	52 kg
Revolutions per minute (rpm)	5000-6000
Displacement	351 cc
Cylinder arrangement	Online
Number of cylinders	2
Starting	Electric or manual
Alternator power	138 watts
Intake system	Overhead camshaft with 2 valves per cylinder
Direction of travel	Forward (F) - Neutral (NC) - Rear (RR)
Gear ratio	2.15:1
Direction	Tiller or remote
Recommended boat transom type	381 mm (S) - 508 mm (L)
Fuel tank capacity	12 l
Fuel tank type	Standard
Fuel type	Essence
Essence	Unleaded 90 RON min.
Engine technology	4 times

Meaning of Engine Models:

E: Electric start. L: Long shaft. XL : Extra long shaft. PT: Trim
H: Tiller handle. M: Manual start. C: Counter rotation
